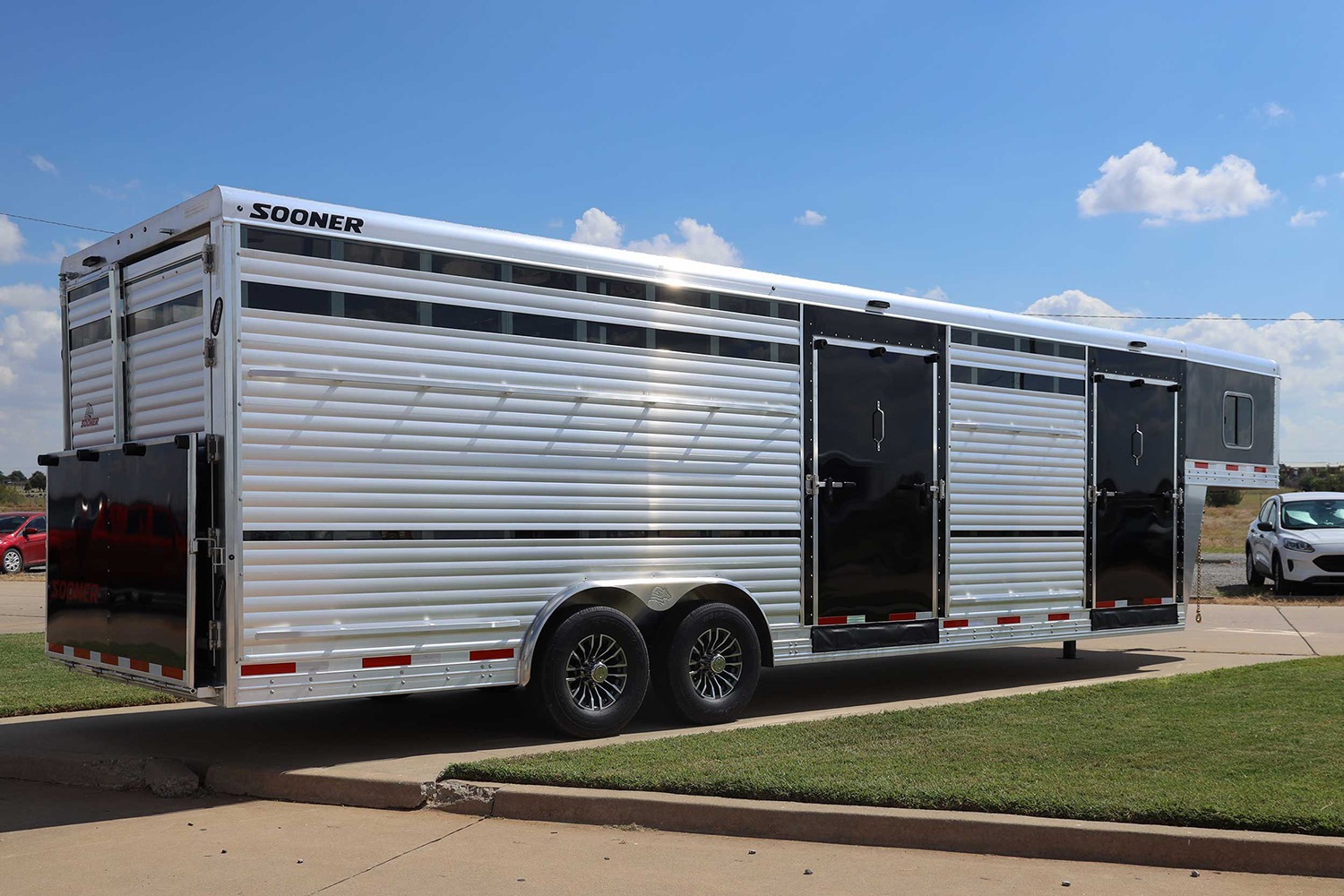

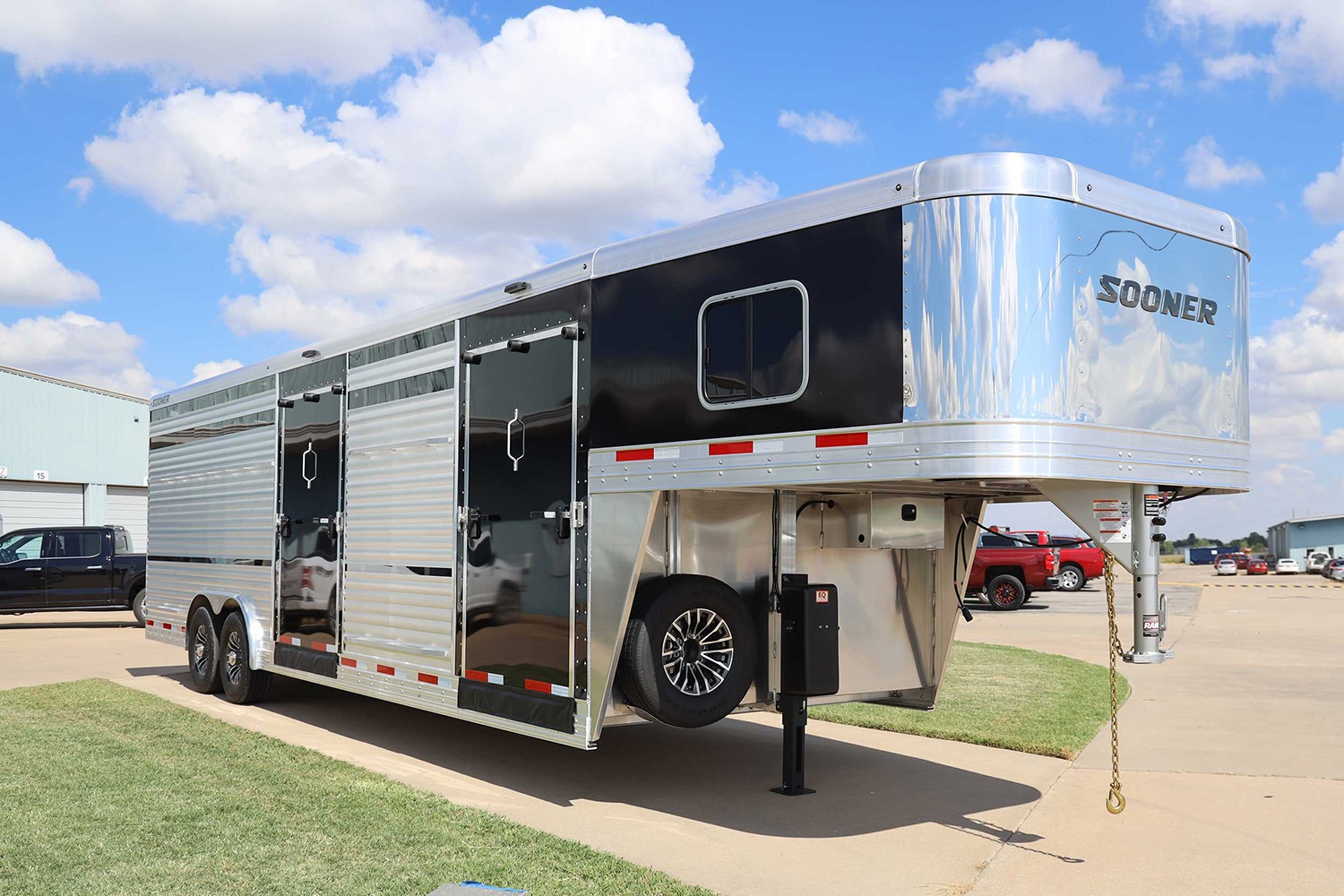

Ranch Stock Combo Trailers

8' Wide

The hard-working Sooner Ranch 8′ wide stock combo trailers give you extra room in the stock area with various customizations available to suit the trailer to your needs. Featuring durable all-aluminum construction, the SRD 8’ wide models feature a 4’ tack room, 37” streetside access door and heavy-duty center gate.

TOP FEATURES

Aluminum Construction

Sooner trailers feature an aluminum frame and an aluminum exterior. Benefits of our aluminum construction include a lighter trailer weight, better towability, easier maintenance and increased value over the life of the trailer.

Aluminum Wheels

Aluminum wheels standard on Sooner SRD trailers provide extra value, greater resistance to corrosion and additional style. In addition, a matching spare tire and rim are standard for extra peace of mind.

LED Stop/Turn Lights

The sleek, standard clear lens LED stop/turn lights on each Sooner stock trailer offer more brightness when traveling down the road. In addition, long lasting LED lights are more efficient and require minimal upkeep. Four lights are standard for extra visibility.

Rear Frame & Gates

Featuring a 6” post and robust lower gussets, the rear frame on a Sooner livestock trailer is built to last. The rear frame is designed to handle repeated use of our heavy-duty rear gates. These 2” thick rear gates feature five rear hinges for maximum strength, convenient slider with rollers and cam lock hardware.

Rear Slam Latch

The standard rear gate slam latch adds safety and convenience when closing the rear gate.

Side Posts

Sooner livestock trailers feature 1 5/8” x 3” side posts. These large side posts are welded to our robust side panels to provide the utmost strength and structural support.

Tear Drop Fenders

The tear drop fenders on Sooner livestock trailers provide extra protection against road splatter and debris. They are easy to remove for maintenance and overall, provide a sleeker look to the trailer.

Trailer Roof

The roof skin on a Sooner trailer is a single piece .040 thick mill-finish aluminum, which is attached to large 1” x 2.5” roof bows. The roof construction process provides for a more durable, longer lasting roof with a superior seal to guard against potential leaks.

Triple Hollow Core Slat

Sooner’s triple hollow core slat is one of the strongest sidewall extrusions in the industry. The sidewall extrusion provides amazing structural support. It also provides for a flat wall on the interior of the trailer.

Standard Features, Specifications and Available Options subject to change without notice. Some trailers may be shown with options.

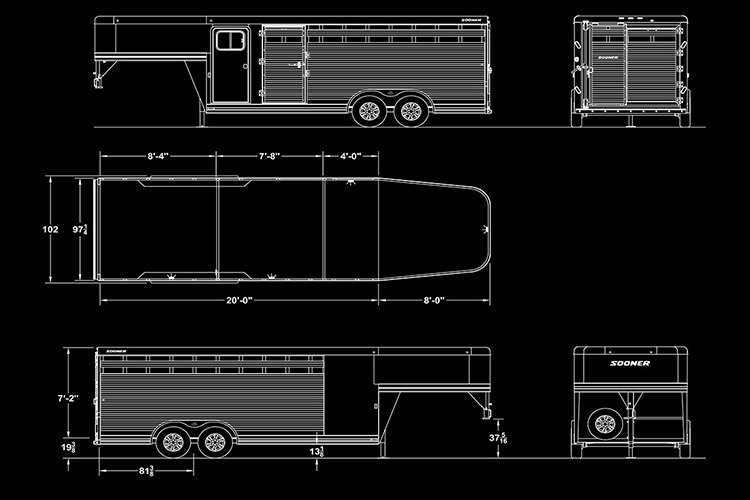

SPECIFICATIONS

Coupler Type Gooseneck
Belly Length 20′
Height 6’8″ or 7’2″
Width 8′
GVWR 14,000 LBS
Weight 5,600 or 5,800 LBS
Axles (2) 7,000 LBS

View All Specs

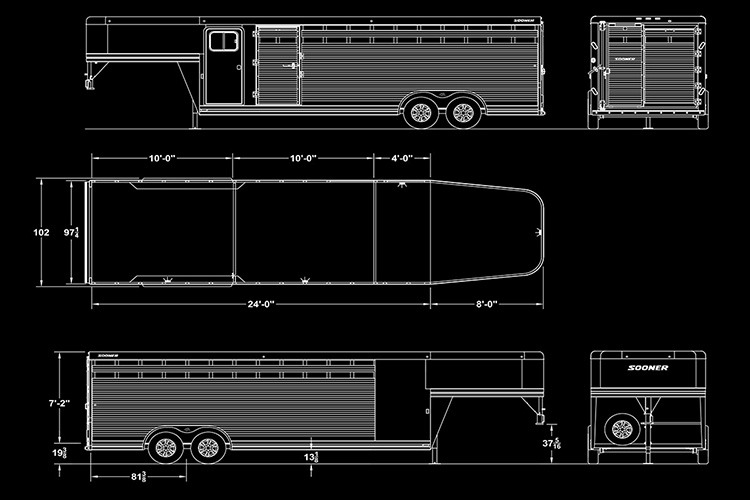

Coupler Type Gooseneck
Belly Length 24′
Height 6’8″ or 7’2″
Width 8′
GVWR 14,000 LBS
Weight 5,800 or 6,000 LBS
Axles (2) 7,000 LBS

View All Specs

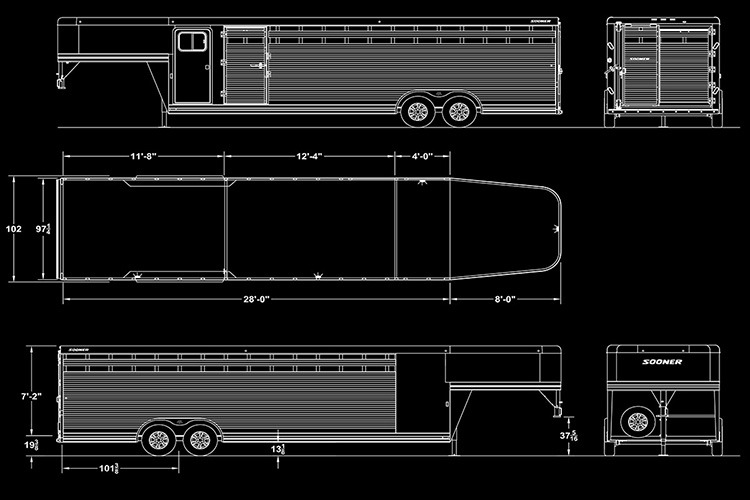

Coupler Type Gooseneck
Belly Length 28′
Height 6’8″ or 7’2″
Width 8′
GVWR 16,000 LBS
Weight 6,000 or 6,200 LBS
Axles (2) 8,000 LBS

View All Specs

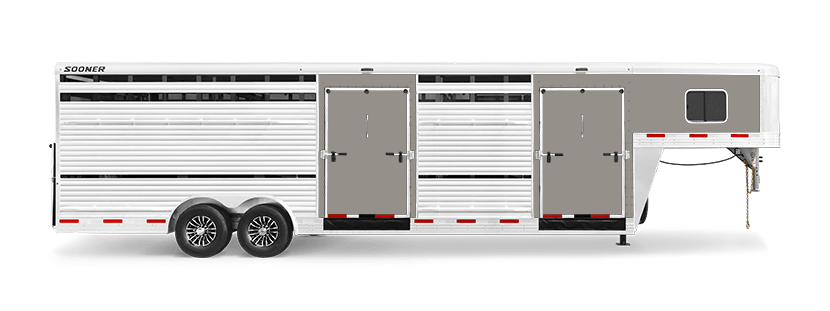

COLORS

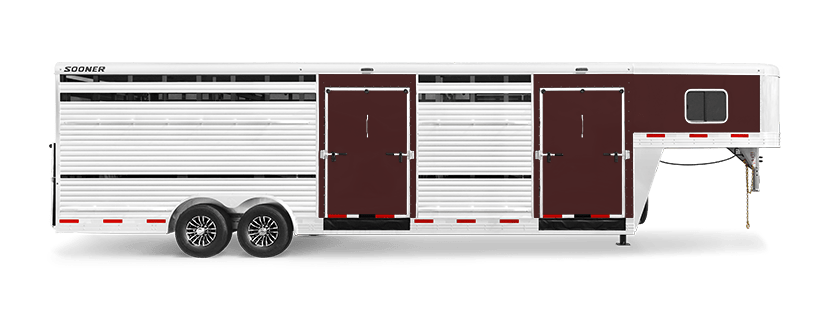

Brandywine

Champagne

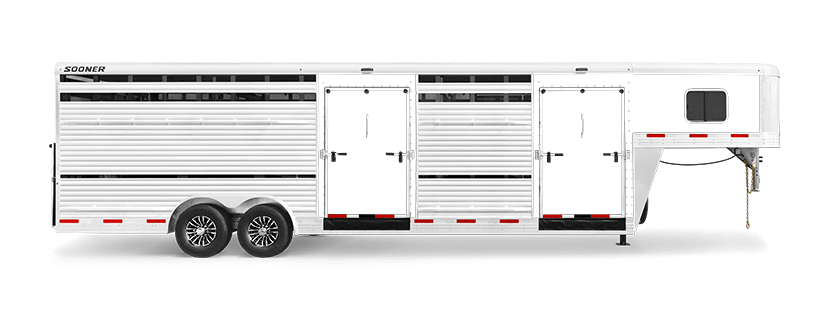

White

Silver

Metallic Black

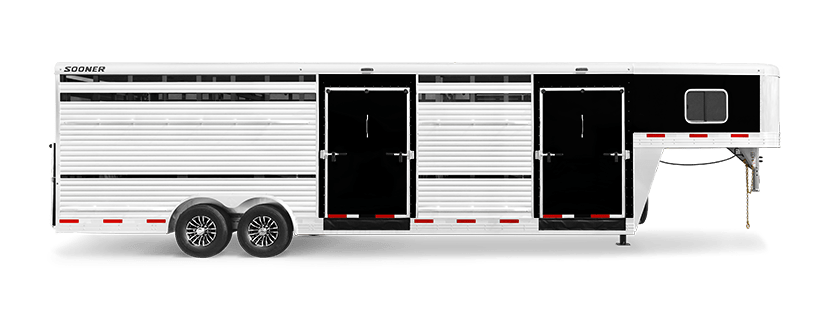

Black

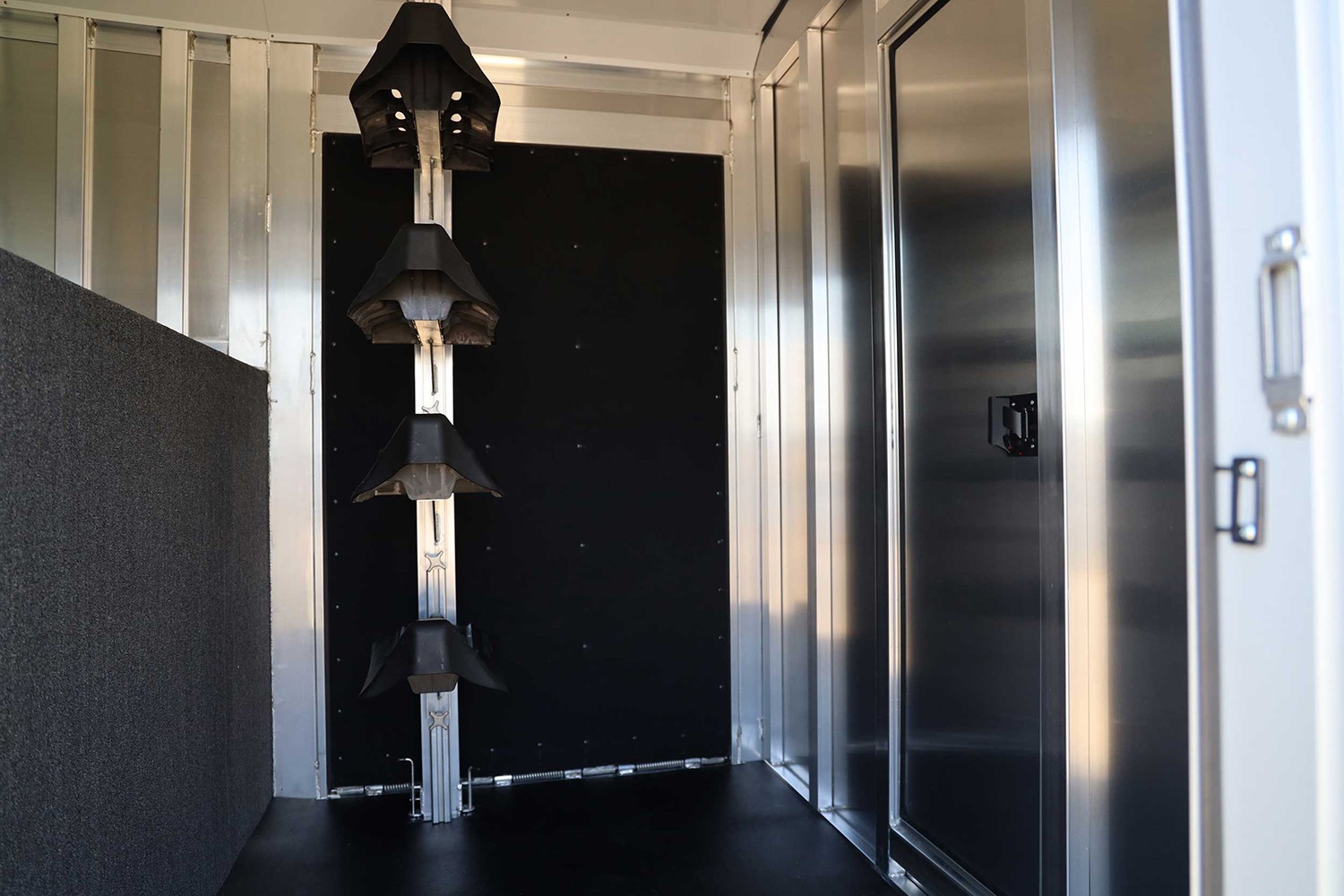

Sooner Ranch SRD 8028 stock combo trailer - dressing room

CUSTOMIZATIONS

2" Lower Air Gap

A lower air gap is optional for additional airflow in the stock area.

Carpet in Dressing Room

Carpet on the gooseneck and drop wall is optional.

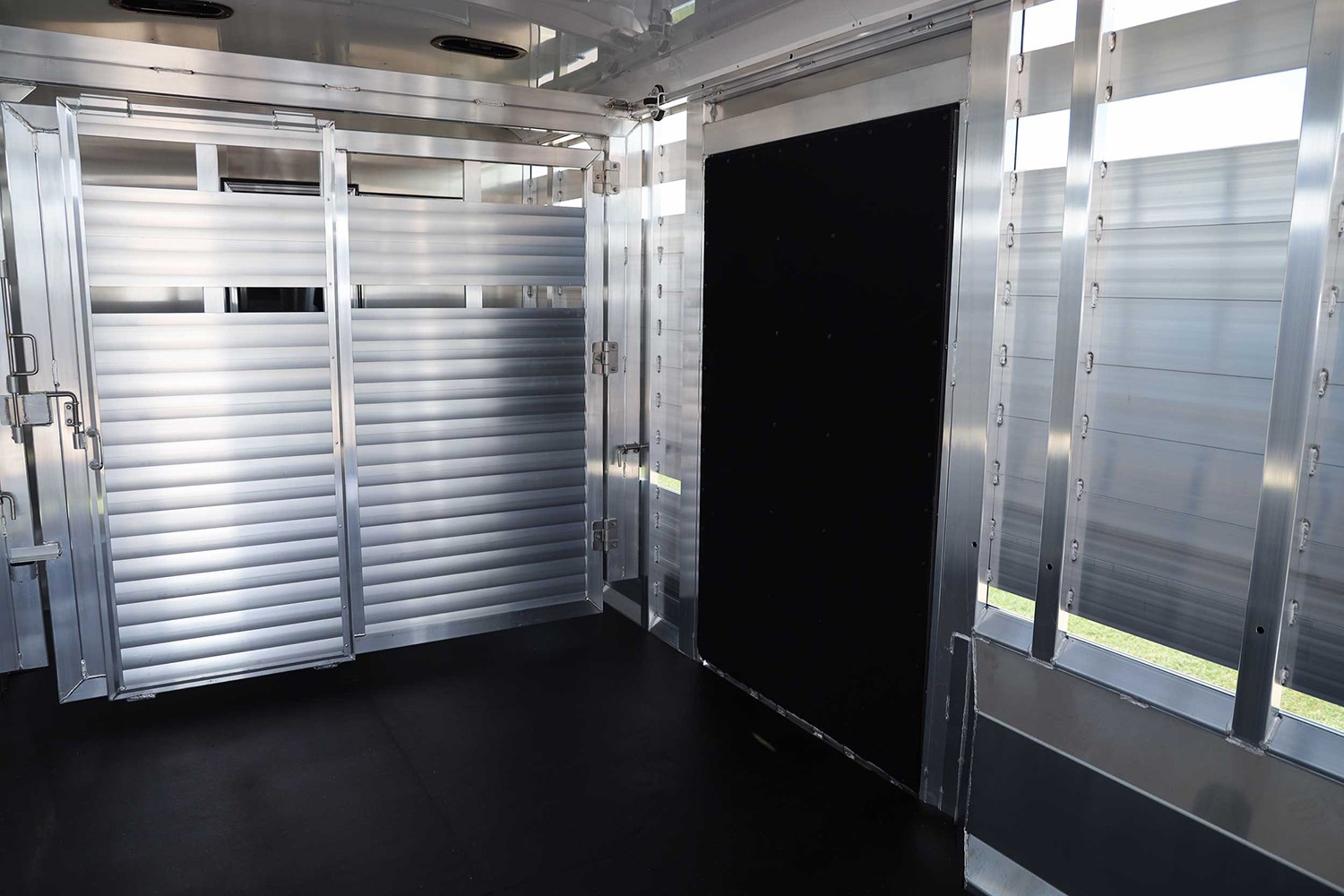

Center Gate Options

Various center gate options are available, including adding a slider to the center gate. Placement of center gates may be customized as well.

Colored Side Sheets on Gooseneck Nose

The gooseneck of the trailer can be customized with one of our exterior side sheet color options.

Easy Care Flooring

Easy Care Flooring offers trailer owners a porous surface that allows fluids to flow through. This option eliminates the need for bedding or cleaning under mats.

Exterior Tie Rail

Tie rail for securing livestock or horses is optional on the exterior of the trailer. Various locations and lengths available.

Floating Center Gate

Convenient floating center gate is optional.

Gooseneck Windows

For extra light into the dressing room, windows in the gooseneck are optional.

Hydraulic Jack

For more convenience and ease of use, a hydraulic jack is optional.

LED Load Light

Additional LED load lights above the rear or side doors are optional for added visibility at night when loading.

Plexiglas

Enclose the side panels of your livestock trailer with Plexiglas.

Raised Sooner Logo

Stand out with our optional raised Sooner logo on the gooseneck nose.

Rear Ramp

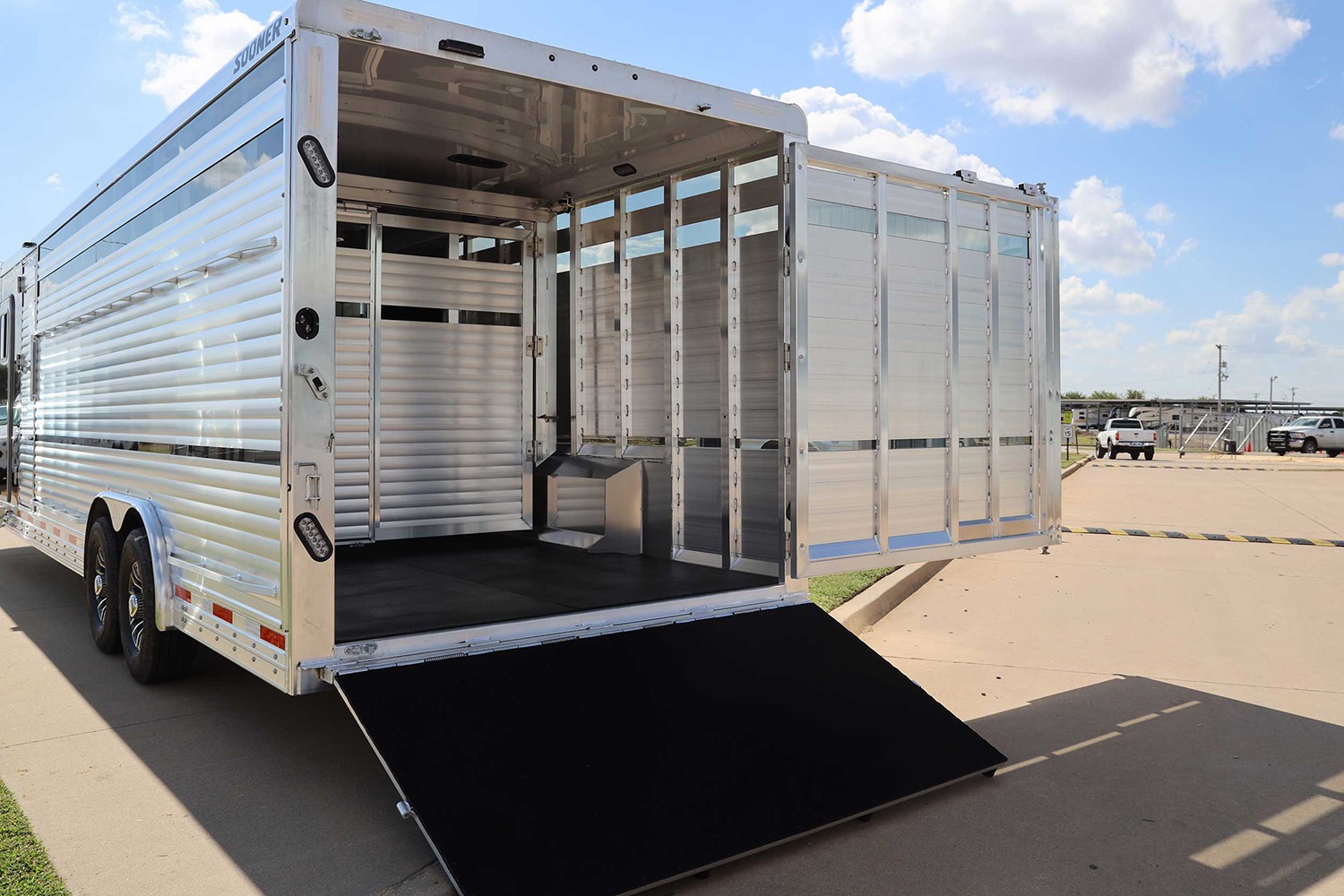

Add a full width rear ramp to make loading easier for those horses or livestock who need it.

Roof Vents

Add more airflow into the trailer with optional roof vents.

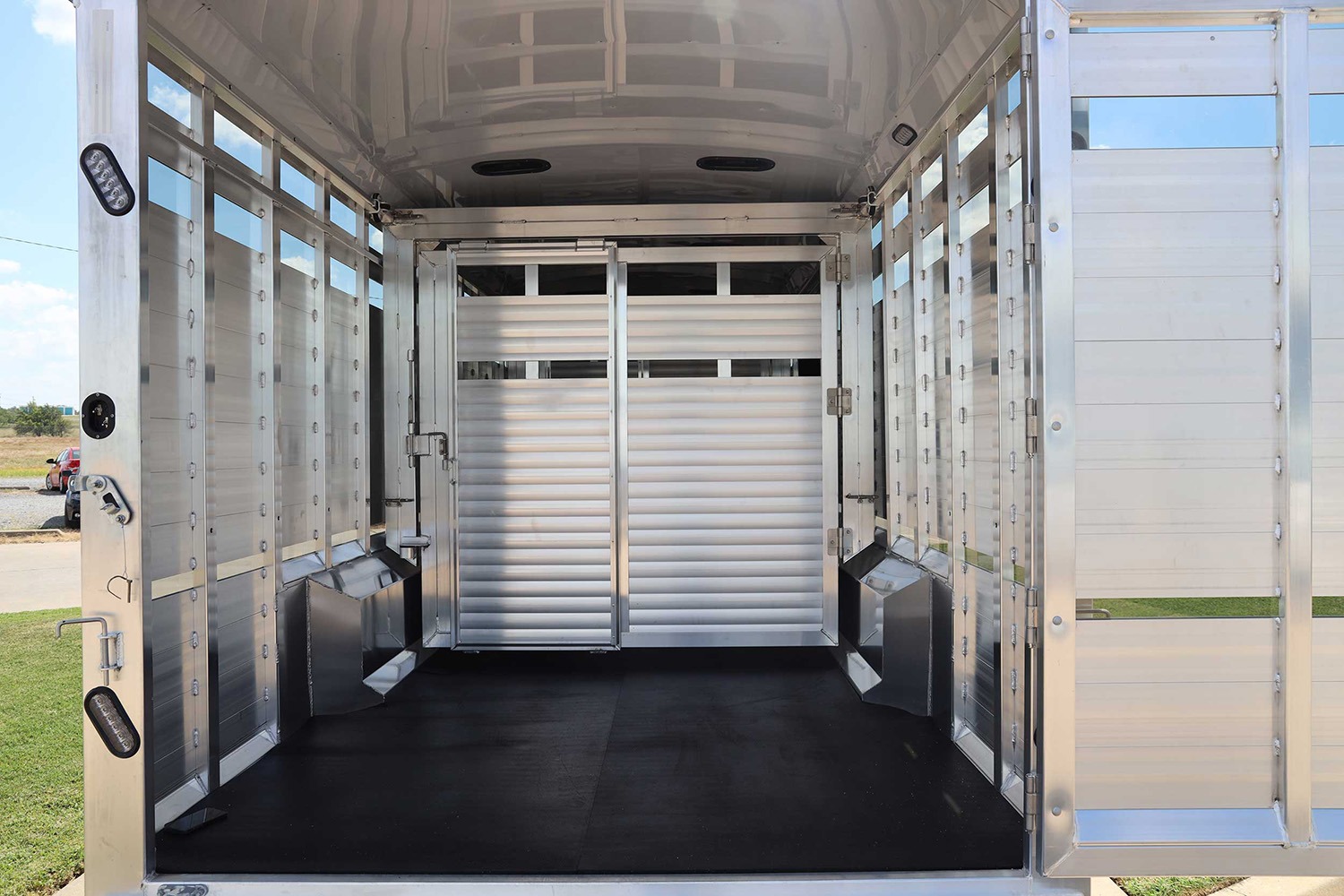

Rubber Mats

Rubber floor mats are optional in the stock area or dressing room.

Saddle Rack

Customize your dressing room with an adjustable saddle rack for transporting your saddles.

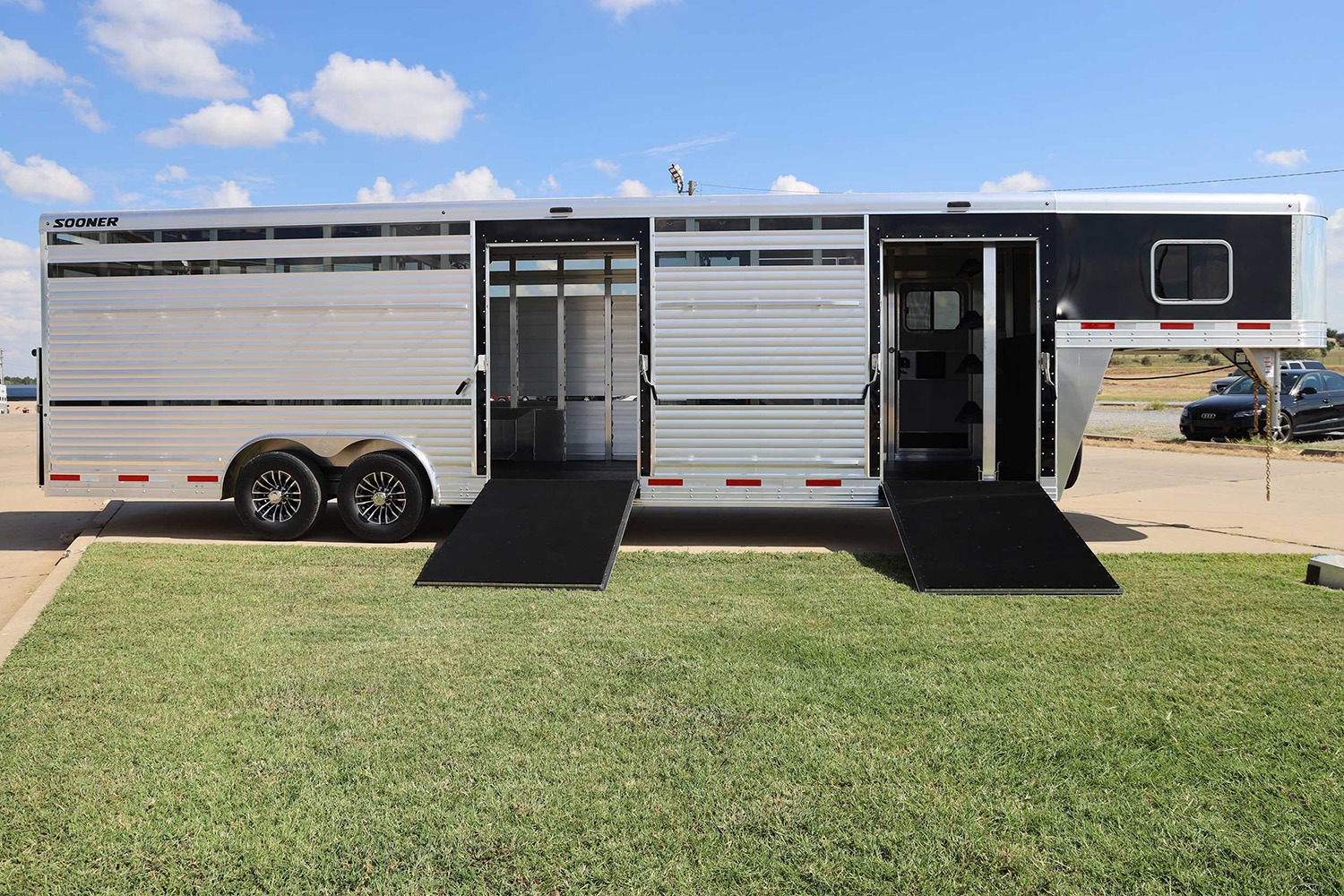

Side Ramp

For another loading option, a side ramp is optional.

Walk Thru Door

Get easy access to the dressing room from the stock area with an optional walk thru door.

White Lined Ceiling

Brighten the interior with a white lined and insulated ceiling.

BUY WITH CONFIDENCE

At Sooner, we pride ourselves in providing one of the best warranties in the business. We’ll be happy to provide a detailed quote on a new Sooner trailer tailored especially for you.

REQUEST A QUOTE

Ranch Stock Combo Trailers 8′ Wide

FEATURES

Coupler Type:

Gooseneck

Trailer Width:

8′ outside width

Inside Height:

6’8″ or 7’2″ inside height

Length:

20′ (8020), 24′ (8024) or 28′ (8028)

Exterior:

Sooner exclusive triple hollow core aluminum slat; .063 white aluminum sheets on 8′ tapered nose

Air Spacing:

Two air gaps w/ Plexiglas tracks

Rear Gate:

Full swing rear door w/ matching air gaps and easy-glide slider w/ handle; Heavy-duty galvanized pipe hardware on rear gate

Center Gate:

One center gate w/ slam latch and external release

Drop Partition:

N/A

Side Unload Door:

Heavy-duty 37″ streetside access door w/ matching air gaps

Floor:

Heavy-duty, aluminum interlocking non-skid floor; Aluminum frame w/ 4″ I-beams on 10″ centers

Roof:

Single piece aluminum roof

Fenders:

Aluminum tear drop fenders

Rear Bumper:

4″ rear rubber bumper w/ skid pan

Running Boards:

N/A

Axles:

Two (2) rubber torsion axles with electric brakes on all wheels; 20′-24′ = 7,000 lbs; 28′ = 8,000 lbs

Tires:

Five 16″ 8 hole aluminum wheels with 10 ply Goodyear tires (20′-24′) or 14 ply Goodyear tires (28′); Includes spare

Landing Gear:

Adjustable 2 5/16″ gooseneck coupler; Single leg landing gear w/ removable crank handle

Hitch Safety:

Breakaway switch w/ battery and slip hook safety chains

Exterior Lighting:

4 rubber mounted LED stop, clearance and tail lights

Interior Lighting:

One LED dome light per compartment; One LED dome light in gooseneck nose; Two interior lights in tack area

Dressing Room:

4′ straight wall tack room w/ camper door with sliding window, deadbolt and screen door

Other:

1 5/8″ x 3″ side posts; 6″ rear posts with heavy-duty rear gussets; Automotive style overhead wiring harness; Pre-framed for windows on each side of gooseneck

Warranty:

3/8 transferable warranty
