Premier Living Quarters
8’ WIDE HORSE TRAILERThe Sooner Premier living quarters horse trailer offers the ultimate in interior décor, comfort and convenience for both horse and rider on the road. Step inside and you’ll find a thoughtfully designed interior living space with options of the Brownstone Latte, Glacier Ash or Urban Saddle interior décor package. The trailer features drop-down feed doors on the streetside, along with a standard awning, white lined interior, fold-up rear tack wall and more! So when you’re looking for your new living quarters trailer, be sure to make the ‘Premier’ choice.
TOP FEATURES

SPECIFICATIONS
Coupler Type Gooseneck
Stalls 3H
Height 7’8″
Width 8’0″

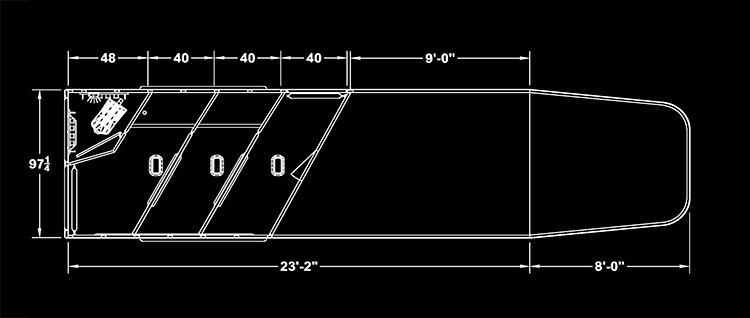

Length 23’2″
GVWR 14,000 LBS
Axles (2) 7,000 LBS

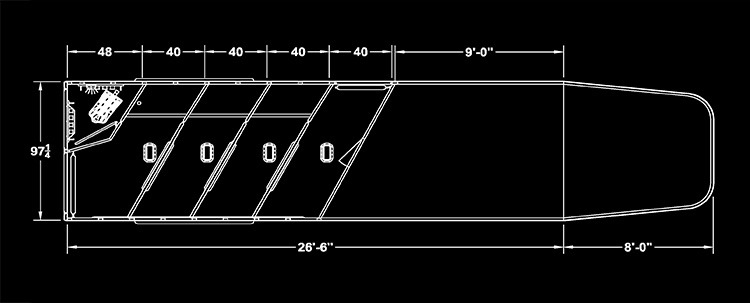

Coupler Type Gooseneck
Stalls 4H
Height 7’8″
Width 8’0″
Length 26’6″
GVWR 14,000 LBS
Axles (2) 7,000 LBS

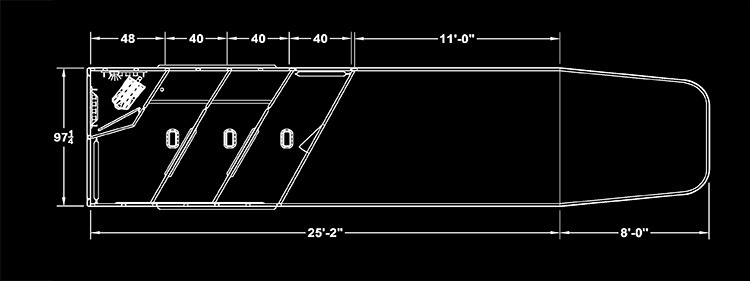

Coupler Type Gooseneck
Stalls 3H
Height 7’8″
Width 8’0″
Length 25’2″
GVWR 14,000 LBS
Axles (2) 7,000 LBS

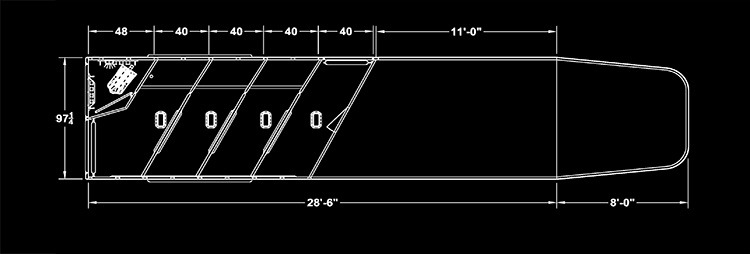

Coupler Type Gooseneck
Stalls 4H
Height 7’8″
Width 8’0″
Length 28’6″
GVWR 14,000 LBS
Axles (2) 7,000 LBS

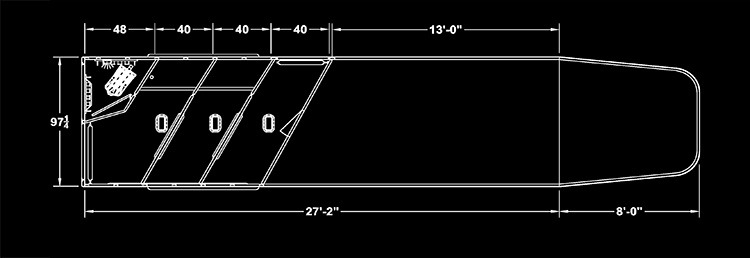

Coupler Type Gooseneck
Stalls 3H
Height 7’8″
Width 8’0″
Length 27’2″
GVWR 14,000 LBS
Axles (2) 7,000 LBS

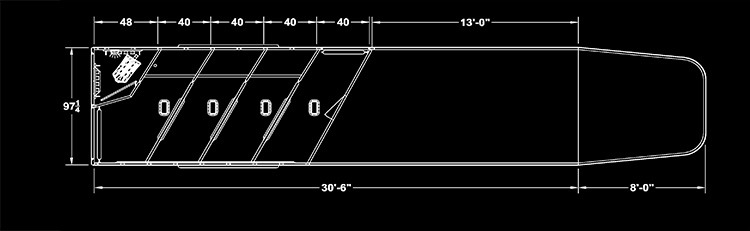

Coupler Type Gooseneck
Stalls 4H
Height 7’8″
Width 8’0″
Length 30’6″
GVWR 16,000 LBS
Axles (2) 8,000 LBS

Coupler Type Gooseneck
Stalls 3H
Height 7’8″
Width 8’0″
Length 29’2″
GVWR 16,000 LBS
Axles (2) 8,000 LBS

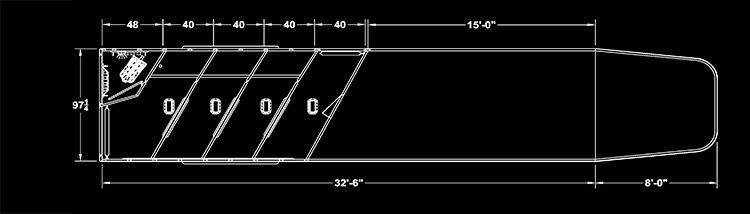

Coupler Type Gooseneck
Stalls 4H
Height 7’8″
Width 8’0″
Length 32’6″
GVWR 16,000 LBS
Axles (2) 8,000 LBS

Coupler Type Gooseneck
Stalls 3H
Height 7’8″
Width 8’0″

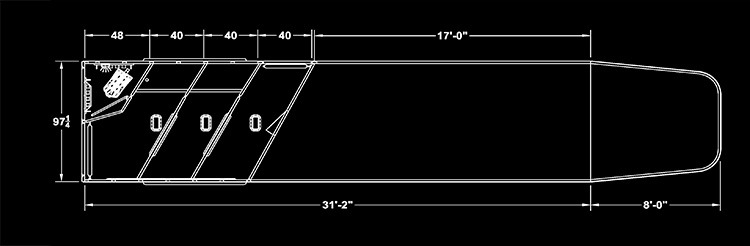

Length 31’2″
GVWR 16,000 LBS
Axles (2) 8,000 LBS

Coupler Type Gooseneck
Stalls 4H
Height 7’8″
Width 8’0″
Length 34’6″
GVWR 16,000 LBS
Axles (2) 8,000 LBS

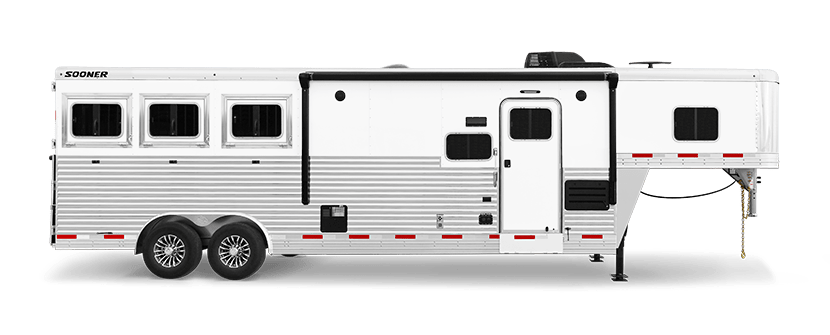

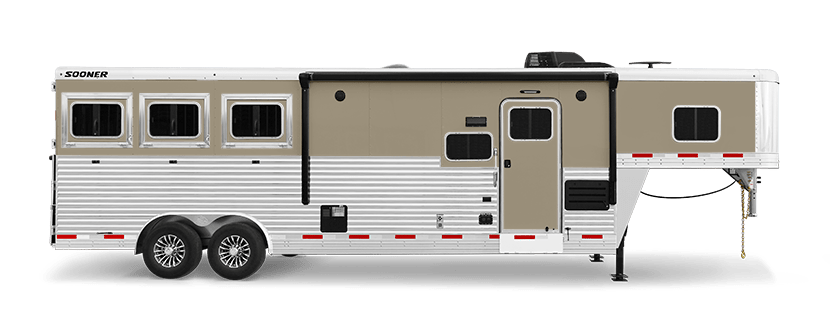

COLORS


CUSTOMIZATIONS
BUY WITH CONFIDENCE
At Sooner, we pride ourselves in providing one of the best warranties in the business. We’ll be happy to provide a detailed quote on a new Sooner trailer tailored especially for you.
Premier Living Quarters Horse Trailer
FEATURES
Coupler Type:
Gooseneck
Load Type:
Slant load
Horse Stalls:
3H or 4H
Trailer Width:
8’0″ outside width
Inside Height:
7’8″ inside height
Stall Width:
40″ stall width
Living Quarters:
9′, 11′, 13′, 15′ or 17′ shortwall
Exterior Sides:
.063 white aluminum side sheets; Full length Echelon extruded aluminum slat
Gooseneck:
8′ tapered nose w/ stainless steel nose sheet; 44″ drop height in gooseneck
Roof:
Single piece aluminum roof w/ one 5″ x 9″ pop-up roof vent per stall
Rear Doors:
50/50 rear doors w/ Echelon slat, heavy-duty 8″ hinges & 19″ x 26″ windows; Cam locks & locking hasps on horse area doors
Rear Tack Area:
Fold-up rear tack wall (streetside wall lined and insulated)
Side Unload Door:
Side access door at first stall w/ windows and bars
Horse Area Walls:
Horse area walls & ceiling insulated and lined w/ white aluminum; Rubber installed 48″ high w/ white aluminum linng above; Aluminum kick plate behind rubber lining
Windows:
Drop down feed doors w/ windows and bars on streetside; 19″ x 26″ windows w/ bars and screen on curbside; Windows in gooseneck
Floor:
Heavy duty, corrugated aluminum interlocking floor w/ 2″ x 4″ I-beams on 13″ centers
Floor Mats:
Lifetime rubber floor mats in horse area
Fenders:
Aluminum tear drop fenders
Axles:
Two rubber torsion axles with electric brakes (7K axles – 8309, 8311, 8313, 8409 & 8411; 8K axles – 8413, 8315, 8415, 8317 & 8417)
Tires:
Five 16″ 8 hole aluminum wheels w/ 10 ply or 14 ply Goodyear tires (includes spare); 10 Ply – 8309, 8311, 8313, 8409 & 8411; 14 Ply – 8413, 8315, 8415, 8317 & 8417)
Landing Gear:
Kingpin hitch w/ 2 5/16″ adjustable coupler; Single leg hydraulic jack (8309, 8311, 8313, 8315, 8409 & 8411); Dual leg hydraulic jack (8413, 8415, 8317 & 8417)
Hitch Safety:
Safety chains, breakaway brake switch w/ battery & box
Exterior Lighting:
LED brake and running lights; Two LED load lights on rear frame
Interior Lighting:
Full length curbside LED light strip in horse area; LED interior light in rear tack

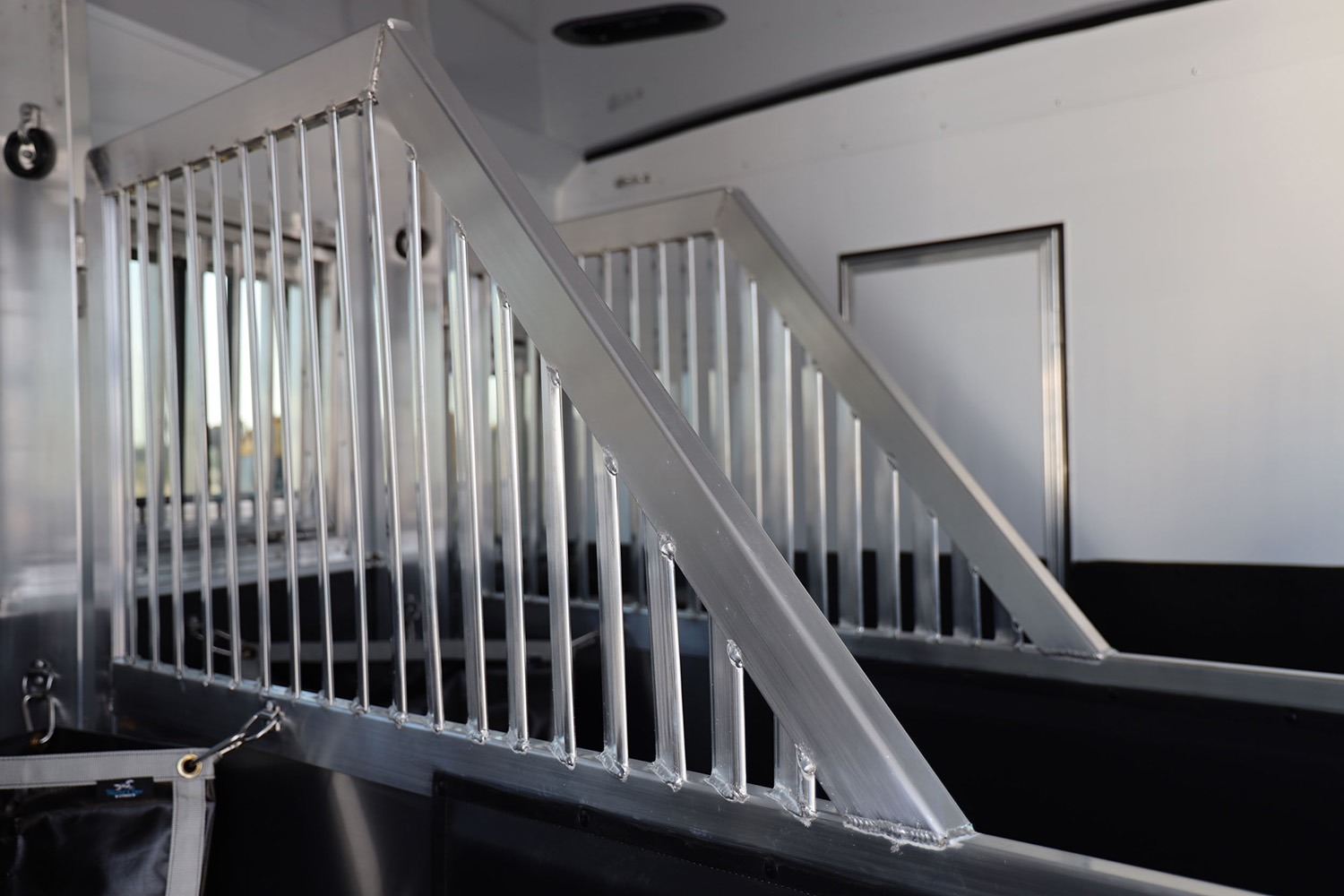

Stall Dividers:
Padded stall dividers w/ slam latch
Butt/Chest Bars:
Padded bars at rear load door & side access door
Tie Rings:
Two exterior tie rings per horse stall and two rubber-coated interior tie rings per horse stall
Saddle Rack:
Adjustable saddle rack per horse (up to 4) on removable post
Tack Items:
Two sets of six aluminum halter hooks and one brush tray; Pitchfork blanket bar
Manger:
Carpeted manger storage w/ LED interior lights, access doors & internal release; 3H = 2 manger doors; 4H = 3 manger doors
Camper Door:
Camper door w/ sliding window & screen door; Fold-up step under camper door; LED lighted grab handle at LQ camper door
Walk Thru Door:
Walk thru door from LQ to horse area
Warranty:
3/8 transferable warranty

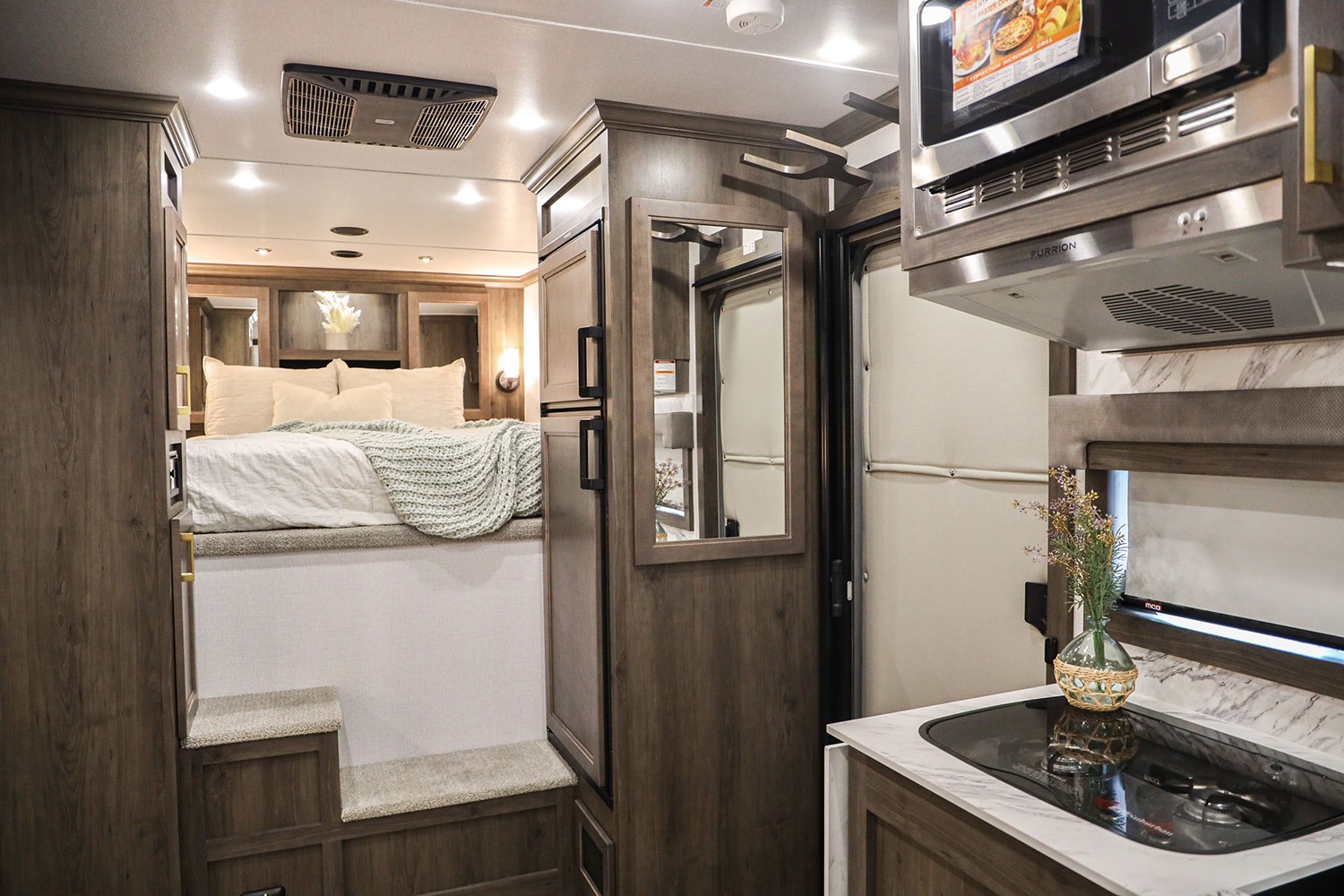

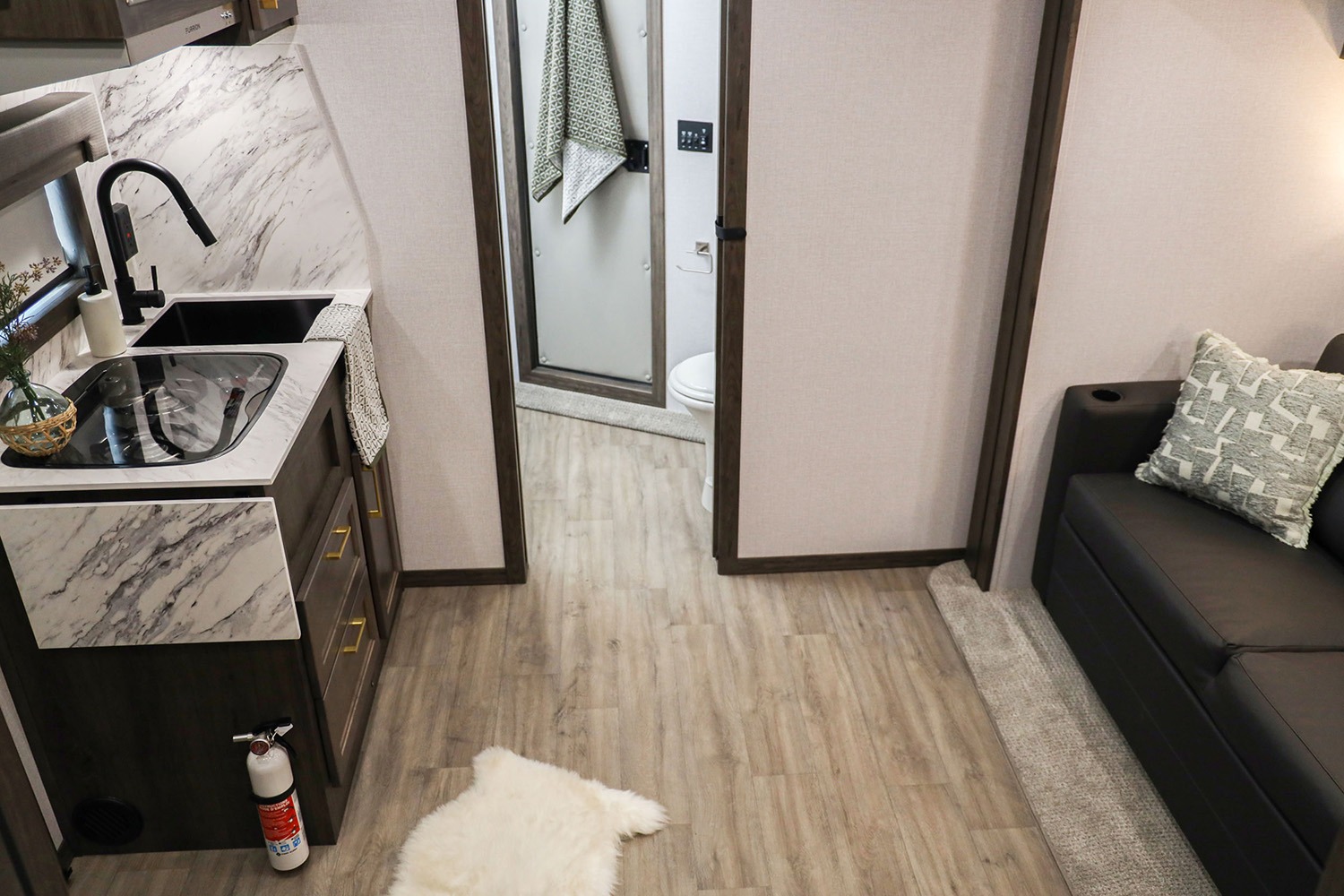

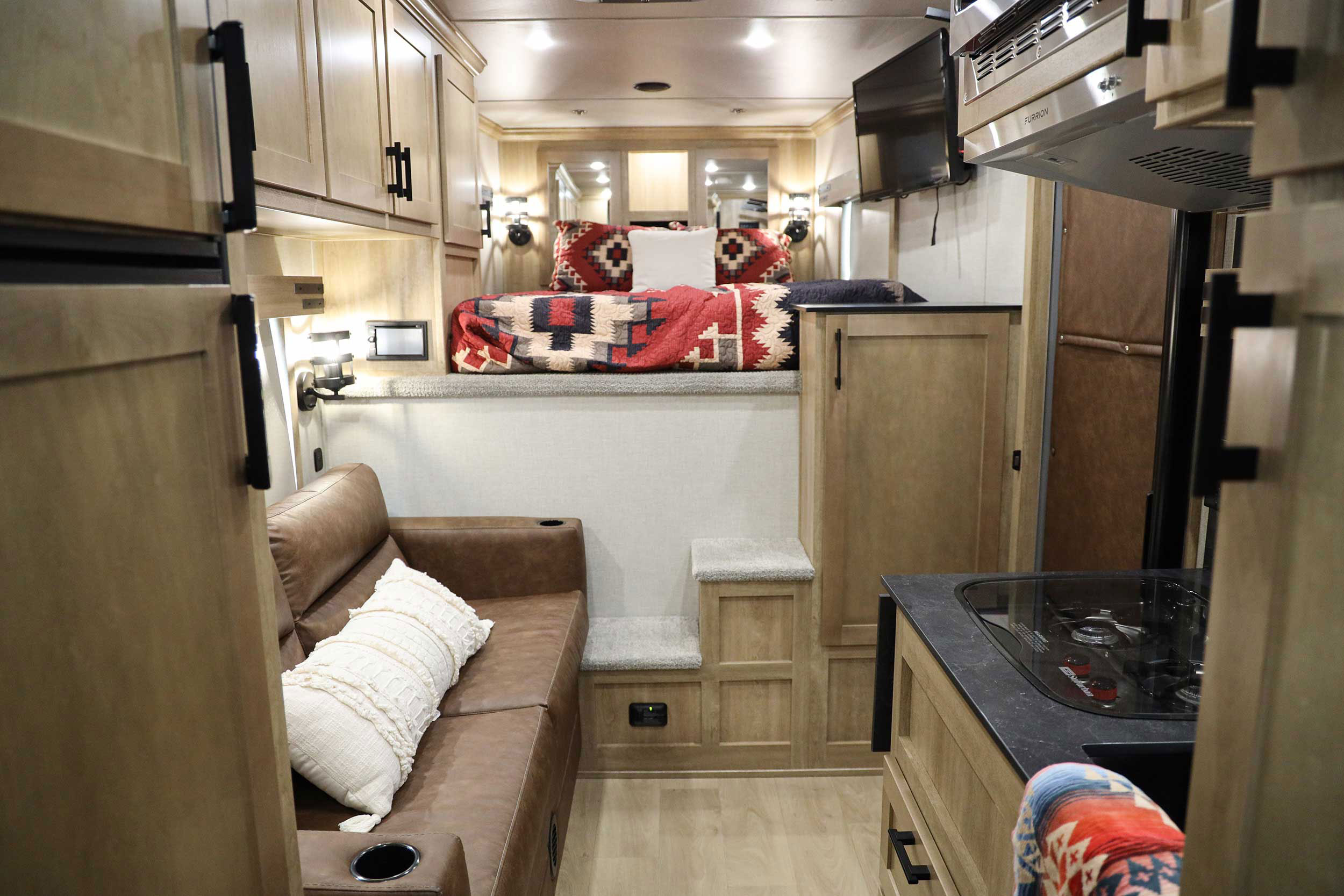

INTERIOR FEATURES
Living Quarters Size:
9′, 11′, 13′, 15′ or 17′
Interior Decor:
Brownstone Latte, Glacier Ash and Urban Saddle Interior Decor Packages available.
Cabinets:
Solid wood cabinet doors w/ European hinges; Vinyl wrapped cabinet faces, trim & door casings
Walls & Ceiling:
Panel walls & ceilings
Windows:
Decorative window trim & valances; Blackout shades on all windows
Counters:
Solid surface countertops with full height backsplash in kitchen & restroom
Interior Doors:
Soft touch door covering on camper door & walk through door; Snap on privacy cover over camper door window
Lighting:
LED ceiling lights, courtesy lights and porch light
Pulls & Accessories:
Stylish door pulls, faucets and accessories (See decor packages for specific style/color)
Flooring:
Commercial grade linoleum flooring w/ moisture resistant 3/4″ subfloor
Entertainment:
Bluetooth enabled touchscreen stereo w/ AM/FM/CD/DVD player; Inside & outside stereo speakers; TV antenna w/ booster

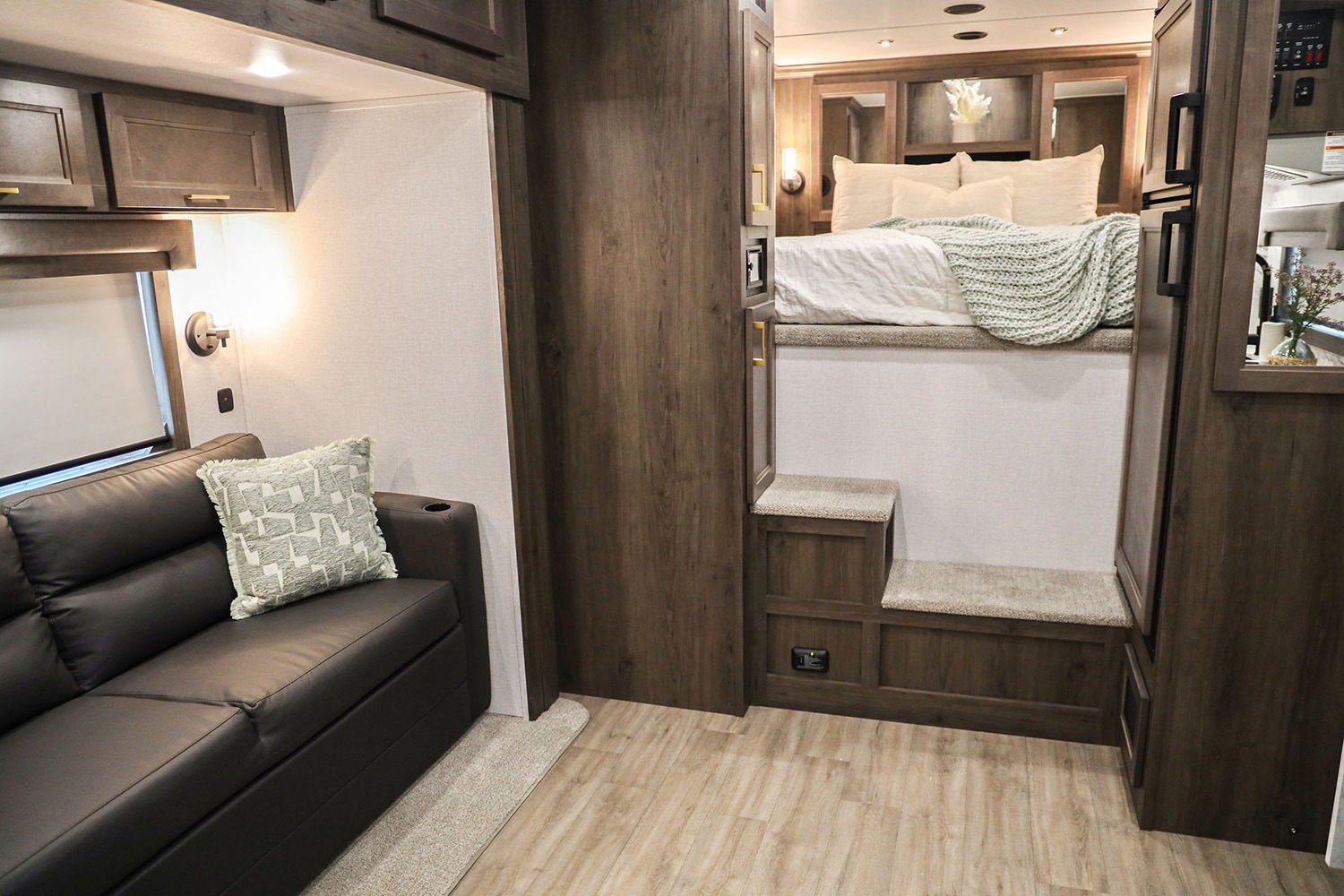

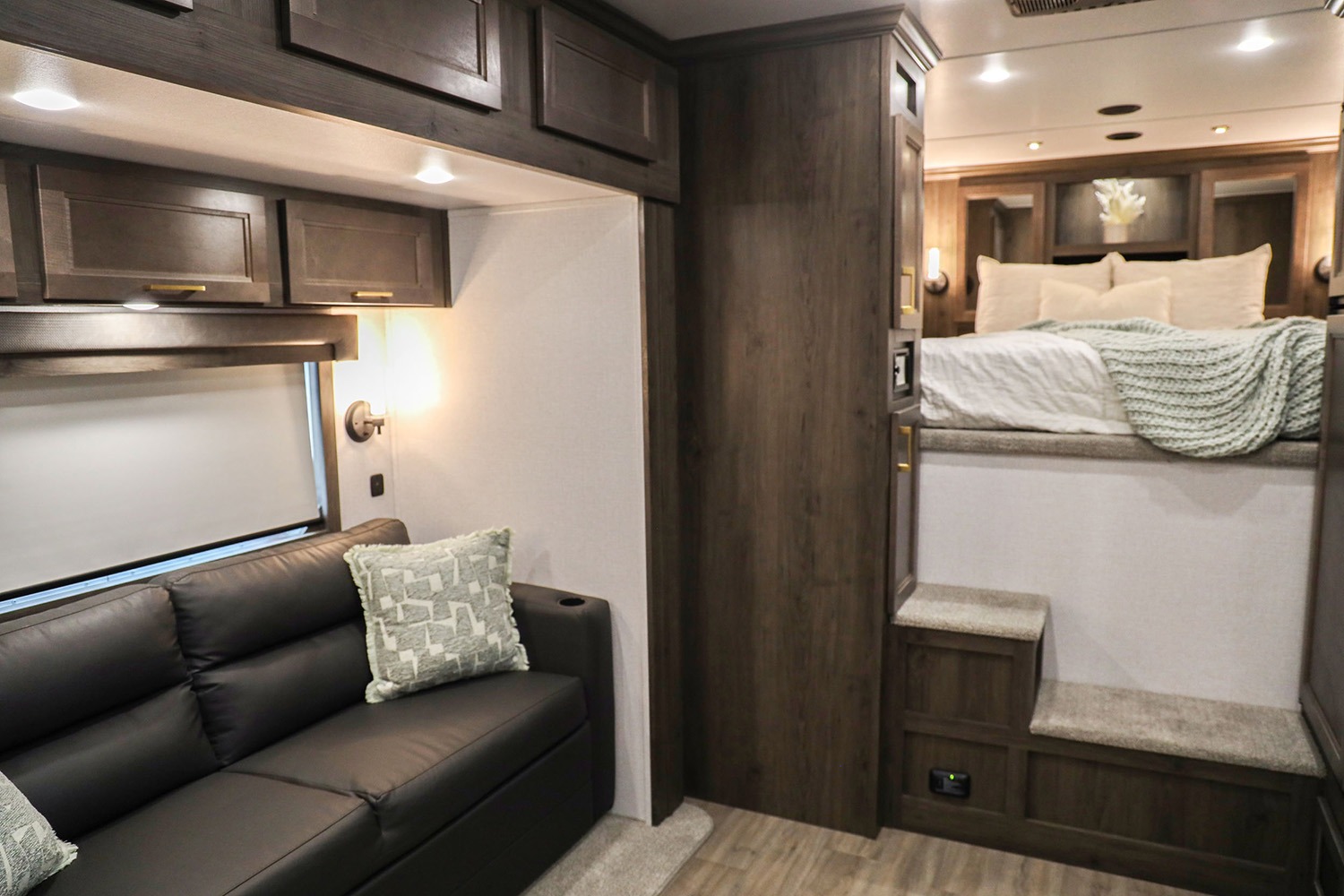

Seating:
Jacknife sofa (Dream Dinette optional) with cabinets and LED lighting above; Select 15′ & 17′ floorplans include sofa and dinette; Cupholders in sofa
Awning:
Electric awning with LED light strip

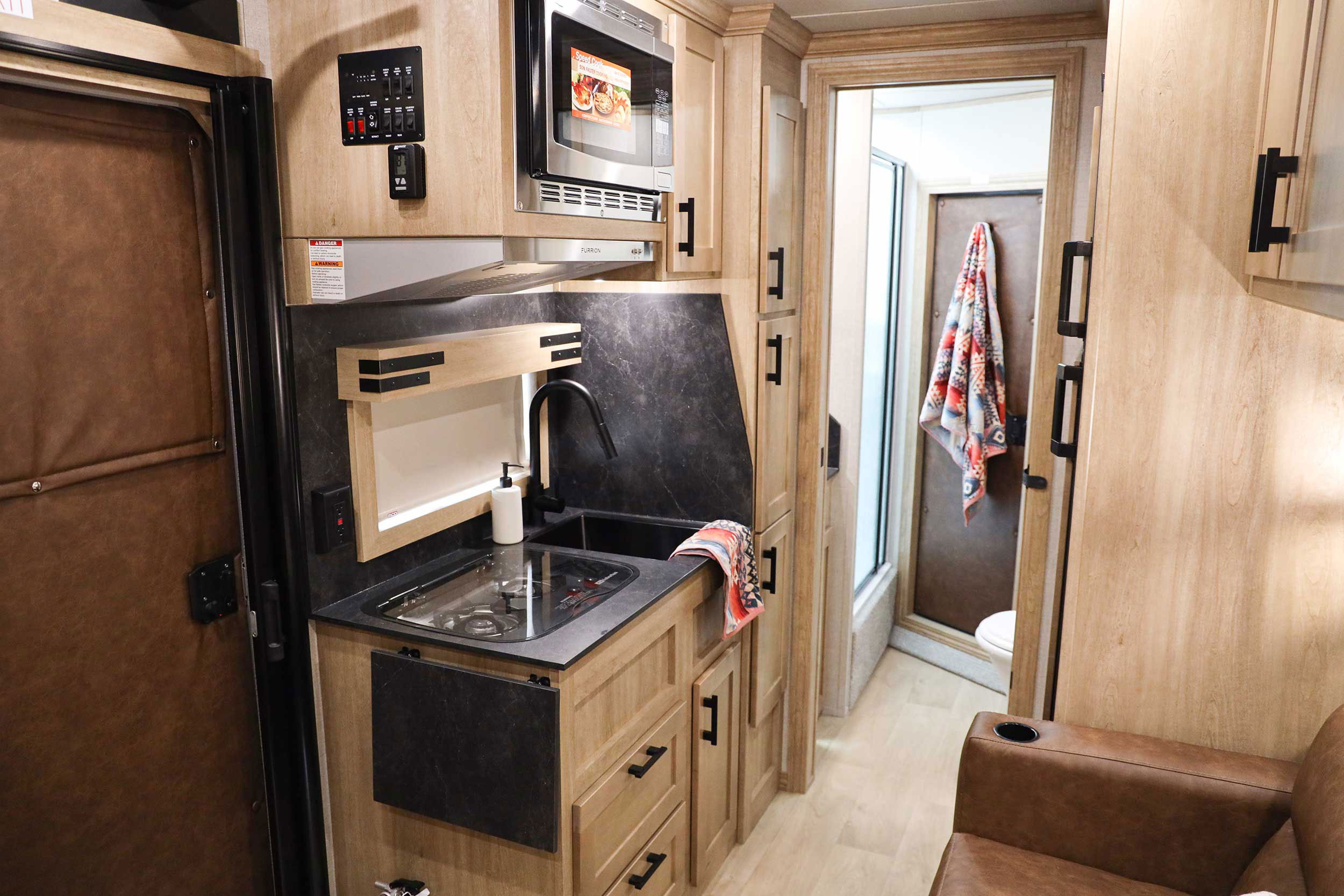

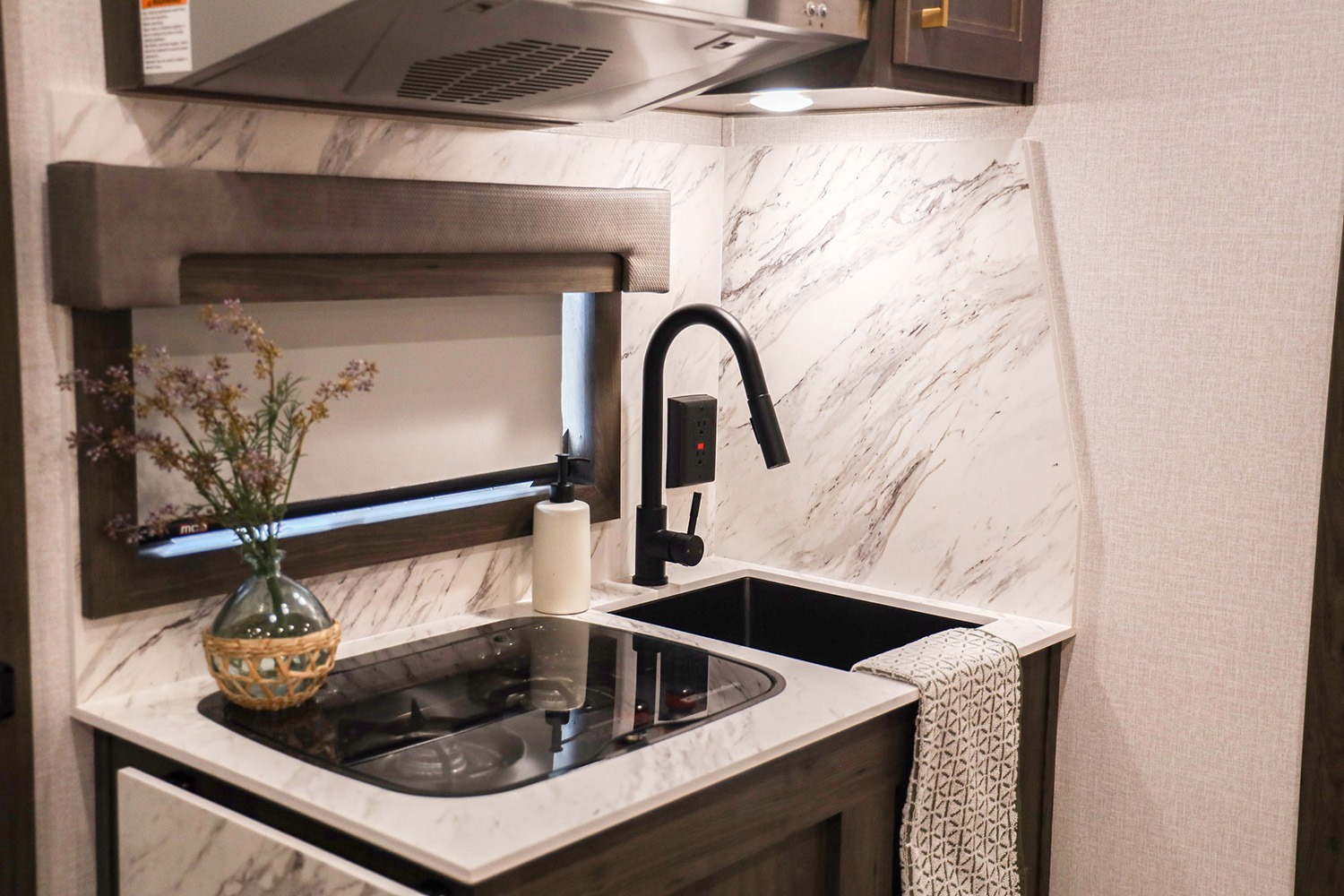

Kitchen Features:
Undermount single bowl kitchen sink w/ pull out faucet and sprayer
Recessed 2-burner stainless steel cooktop
Lighted/vented stainless steel range hood
1 cu. ft. stainless steel convection microwave (9′ & 11′ floorplans)
1.9 cu. ft. stainless steel convection microwave (13′, 15′ & 17′ floorplans)
3 cu. ft. refrigerator (9′ floorplan)
8 cu. ft. refrigerator with solid wood door (11′ & larger floorplans)

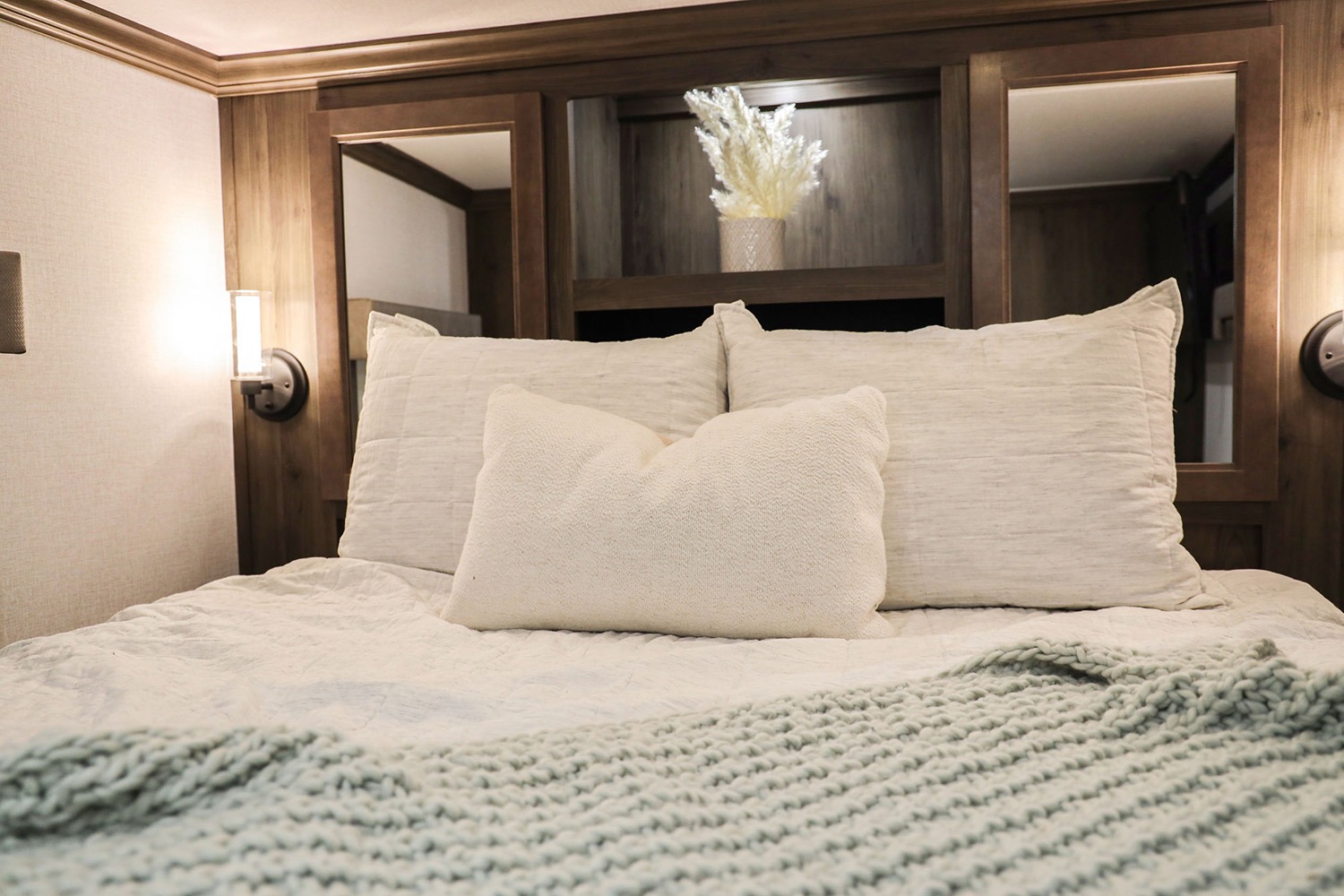

Bedroom Features:
Foam plush queen size mattress
Berber carpet on bunk area floor
Front wardrobe w/ two doors & middle storage
Shirt closet in bunk area
USB charger
LED reading lights in bunk area
Floorplan with bunk beds in LQ available

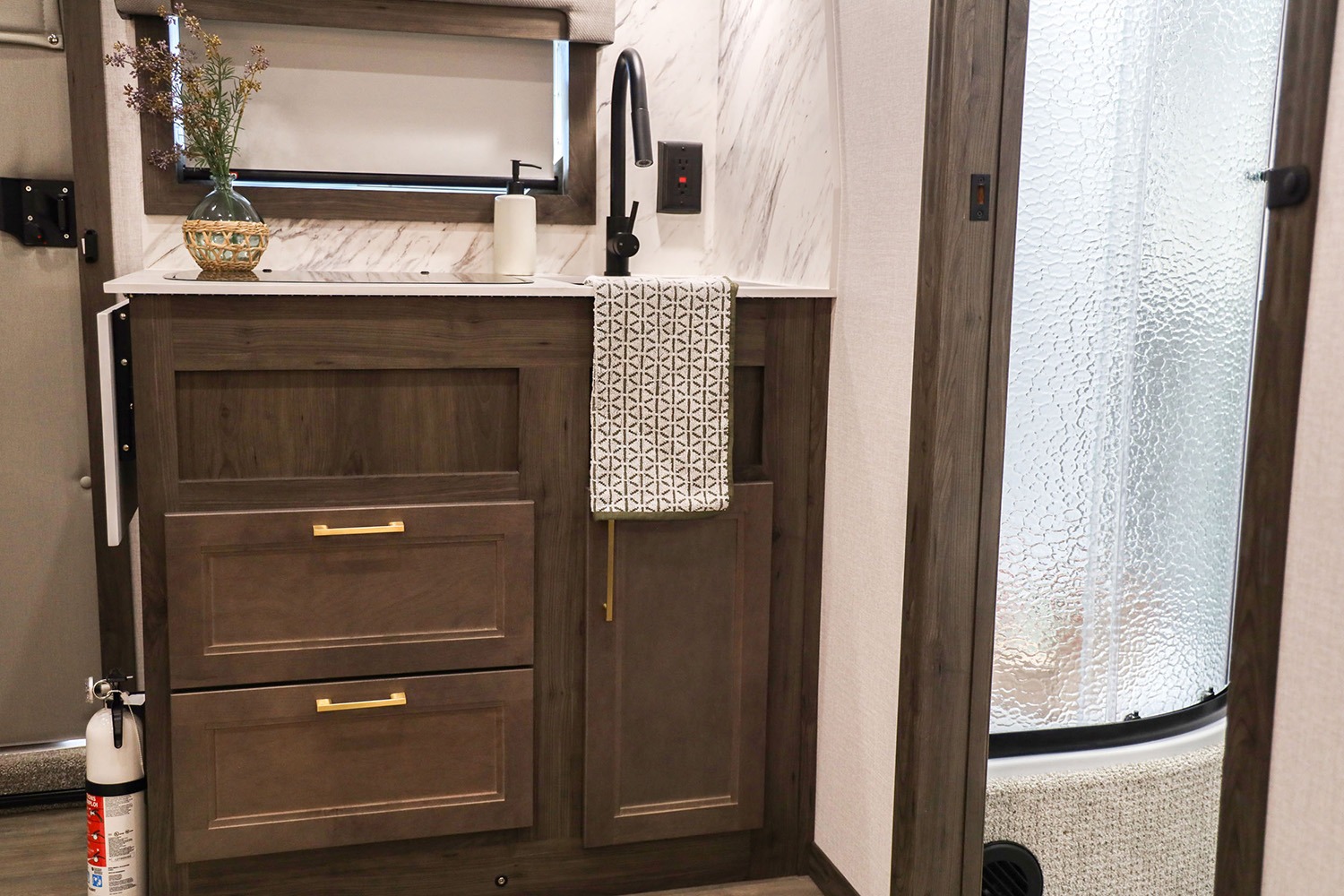

Bathroom Features:
Hollow core pocket door to bathroom

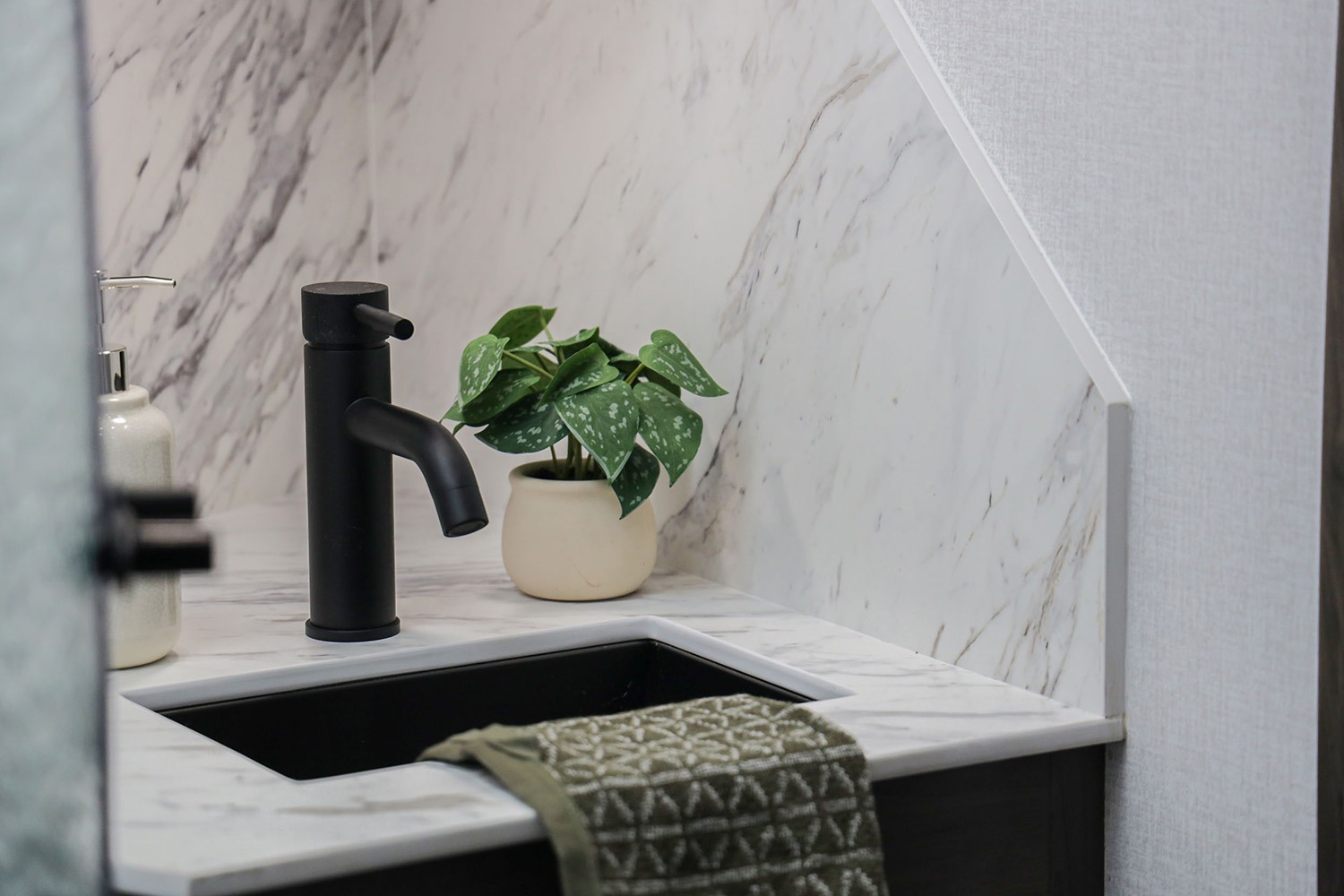

Undermount bathroom sink w/ medicine cabinet above
Linen closet w/ light & mirrored doors
Radius (white) shower w/ rain glass door
Skydome above shower
Porcelain foot flush toilet
Power lift roof vent
General Features:
Pressure water system w/ large fresh water tank and two large waste water tanks
6 gallon water heater
Sewer hose and holder
City water hook up and outside water spigot
Dual 20 lb. LP tanks w/ regulator
55 amp power converter
20K BTU ducted furnace
13,500 BTU air conditioner w/ heat strip
110 volt exterior outlet & 120V (30 amp) shoreline
